Log in as an Admin or Manager at workspace layer or higher. You'll see any clouds and associated services you've already added on the 'Cloud services' page (home page).
Prerequisites:
You'll need the following to make use of your Cloud Connector.
- A Telstra Next IP® network. If you don't have one, contact us to begin the purchasing process. This could take up to 10 business days.
- A cloud service compatible with Cloud Sight (Azure or AWS).
After your Cloud Connector is added to Cloud Sight, you'll need to link it to your Next IP network and one or more clouds. More details can be found in the follow-up steps.
Note
- Additional costs may apply when linking your Cloud Connector to a cloud. e.g. You'll need to purchase an Azure ExpressRoute for linking Cloud Connector to an Azure cloud.
-
Currently the Cloud Connector only supports private peering.
Adding your Cloud Connector - AWS

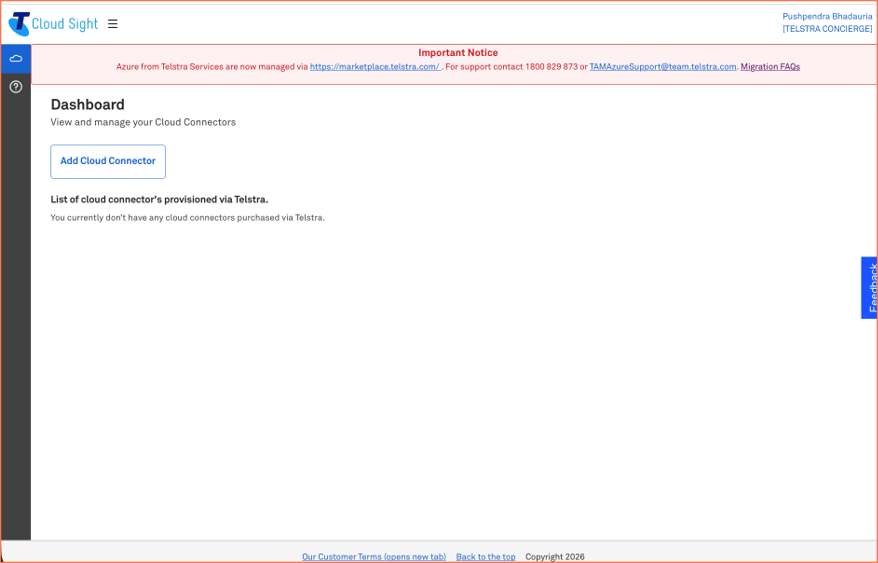

- Click on the Add Cloud Connector button on the top left of the page, under the title Dashboard. This takes you to the 'Add Cloud Connector' flow.

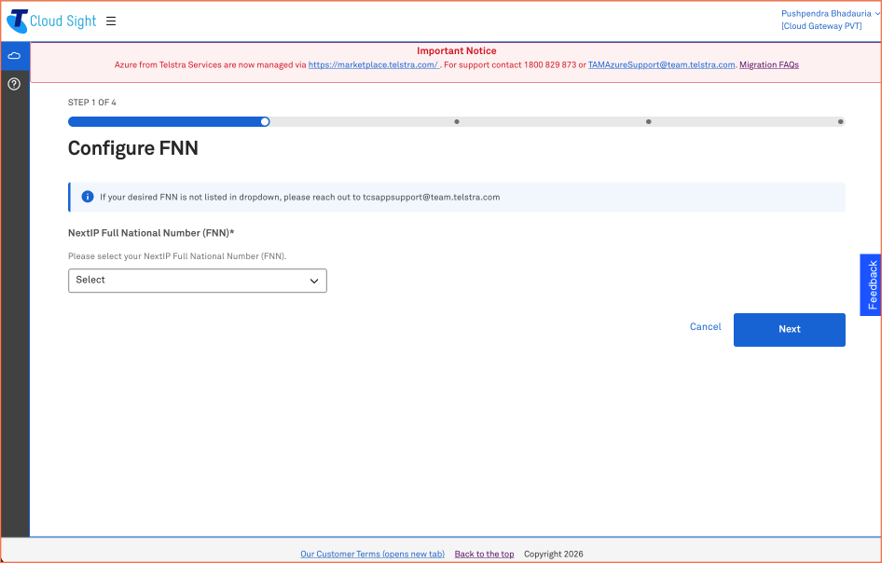

Step 1: Configure FNN

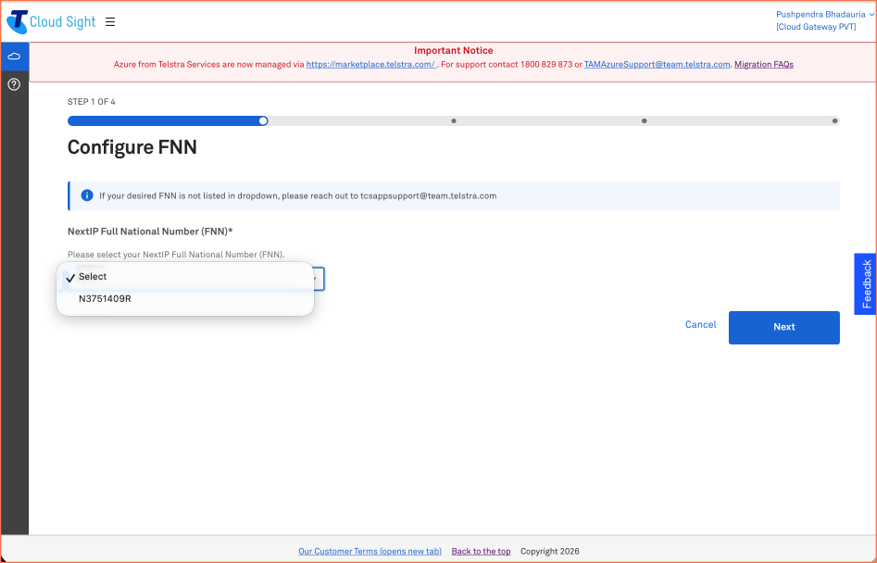

Please select your NextIP Full National Number (FNN) from the dropdown and click Next

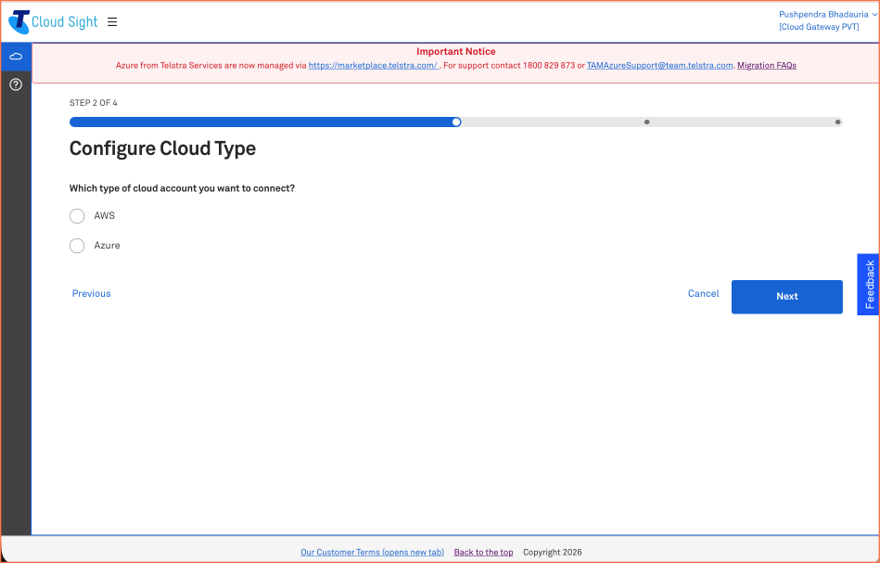

Step 2: Configure Cloud Type
Please select Which type of cloud account you want to connect? Select AWS or Azure from the options and click Next

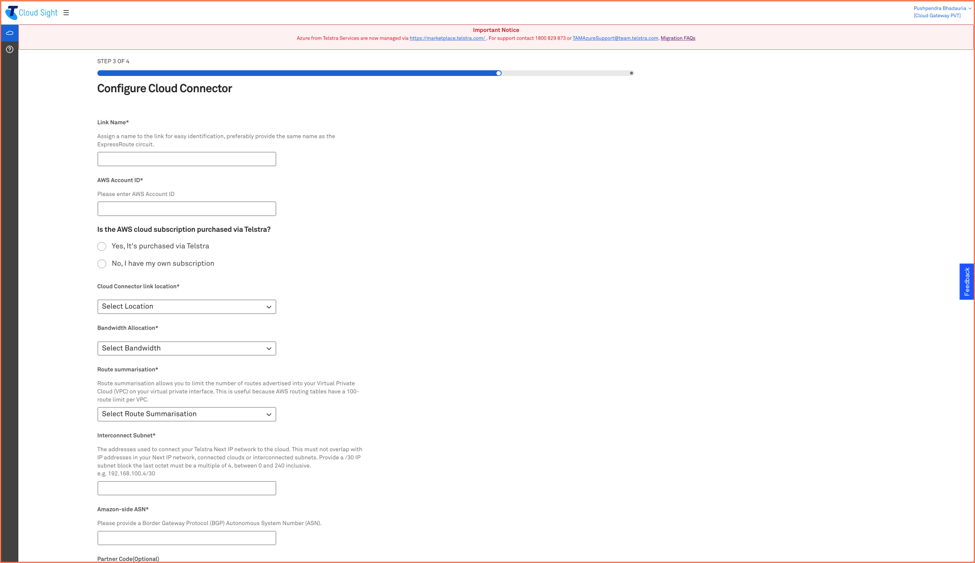

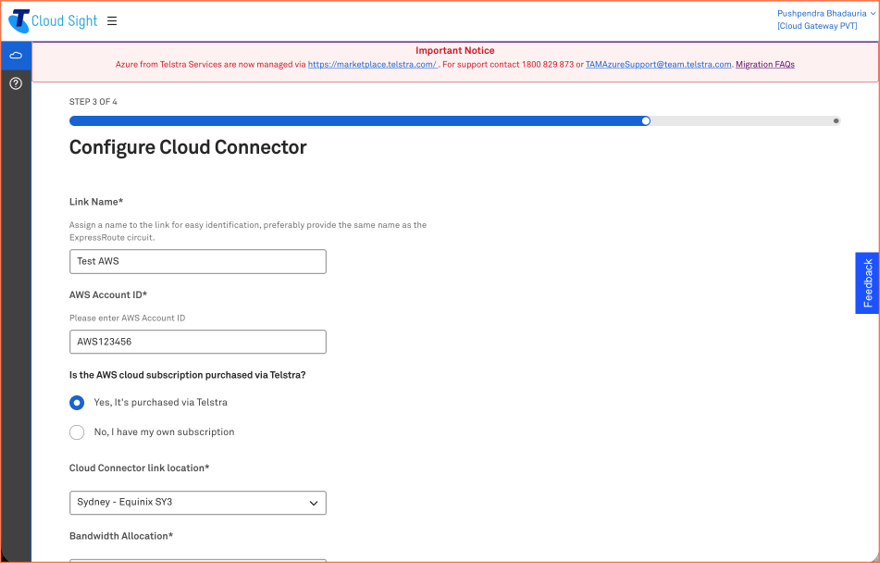

Step 3: Configure Cloud Connector (AWS)
Please provide below details:
- Link Name
- AWS Account ID
- AWS cloud subscription source – Telstra or BYO
- Cloud Connector link location – Melbourne or Sydney – Equinix SY3
- Bandwidth Allocation – Select from 50 Mbps, 100 Mbps, 200 Mbps, 300 Mbps, 400 Mbps, 500 Mbps, 1 Gbps, 2 Gbps, 5 Gbps
- Route Summarisation - Route summarisation allows you to limit the number of routes advertised into your Virtual Private Cloud (VPC) on your virtual private interface
- Interconnect Subnet - The addresses used to connect your Telstra Next IP network to the cloud
- Amazon side ASN - Please provide a Border Gateway Protocol (BGP) Autonomous System Number (ASN).
-
Partner Code (Optional) - Input the authorized partner code to proceed with commission initiation

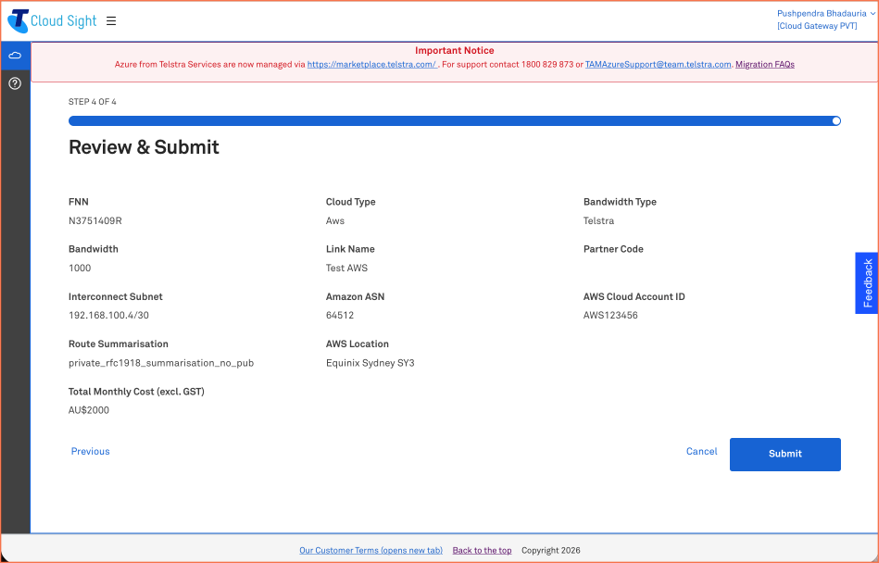

Step 4: Review & Submit
Verify all details and click on Submit
Adding your Cloud Connector - Azure
- Click on the Add Cloud Connector button on the top left of the page, under the title Dashboard. This takes you to the 'Add Cloud Connector' flow.
Step 1: Configure FNN
Please select your NextIP Full National Number (FNN) from the dropdown and click Next
Step 2: Configure Cloud Type
Please select Which type of cloud account you want to connect? Select AWS or Azure from the options and click Next

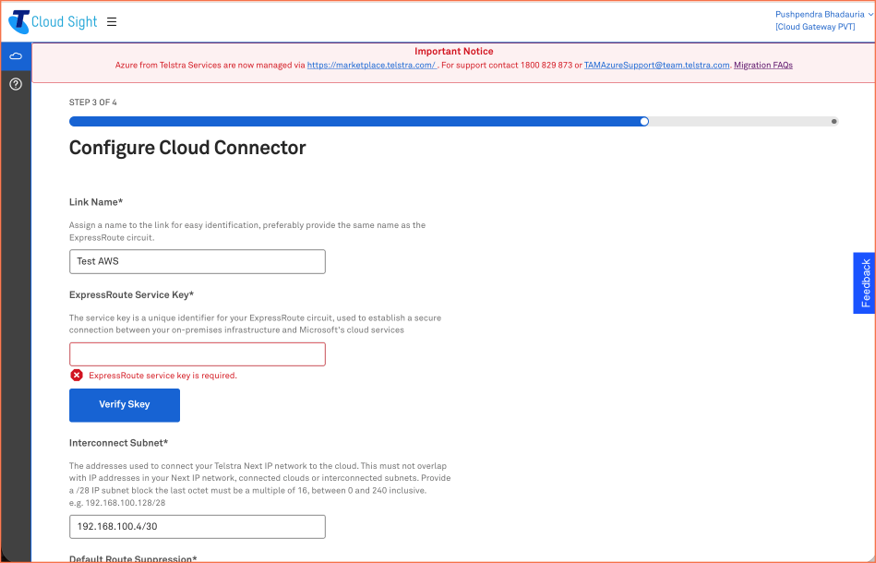

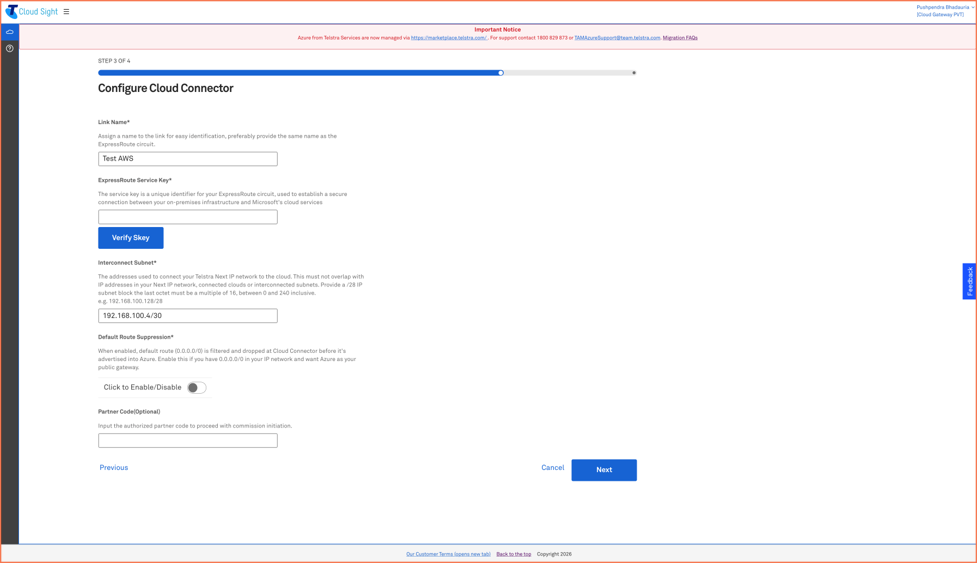

Step 3: Configure Cloud Connector (Azure)
Please provide below details:
- Link Name
- ExpressRoute Service Key*
- Interconnect Subnet - The addresses used to connect your Telstra Next IP network to the cloud
- Default Route Suppression - When enabled, default route (0.0.0.0/0) is filtered and dropped at Cloud Connector before it's advertised into Azure.
- Partner Code (Optional) - Input the authorized partner code to proceed with commission initiation
Step 4: Review & Submit
Verify all details and click on Submit
